Split ASME B16.5 loose flange

A loose flange is a flange that is loosely set on the edge of a container or pipe. Flange is the shaft and shaft connected parts, used for the connection between the pipe end; Also useful in equipment inlet and outlet flange, used for the connection between two equipment.

The advantage of loose flange is that the flange deformation does not produce additional torque on the container or pipeline, easy to manufacture, can be made of different materials from the container or pipeline, easy to save precious metals.

Some time ago we exported a batch of ASME B16.5 “special” ASTM A181 CL60 loose flanges to USA. Why are these flanges special? The special feature of this shipment is that the customer needs to cut the loose flange. Of course, we cut according to the customer’s requirements, but the customer does not know the cutting size. We are experienced in flange cutting. After communication with the customer, we know the purpose of the customer to buy this batch of flanges. Finally, we provided the drawings to the customer and got the customer’s affirmation.

Below are drawings and final products made by our technicians according to customer’s description.

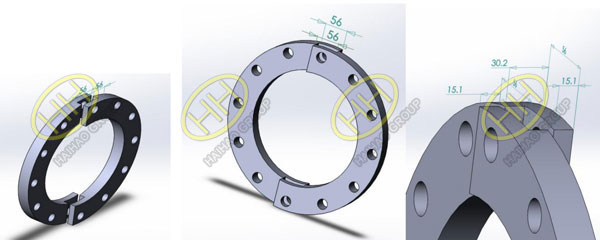

Drawing for split ASME B16.5 loose flange

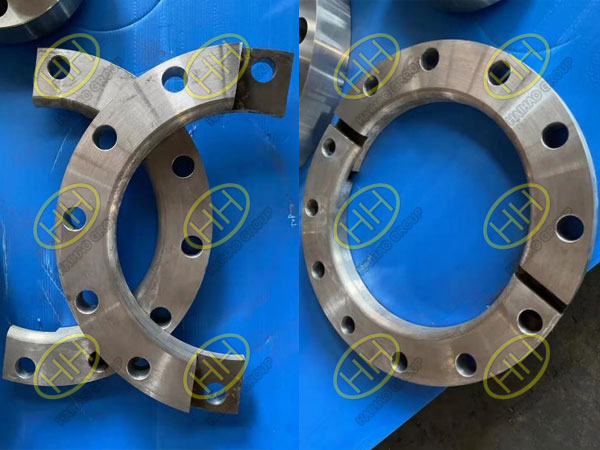

Split ASME B16.5 ASTM A181 loose flange

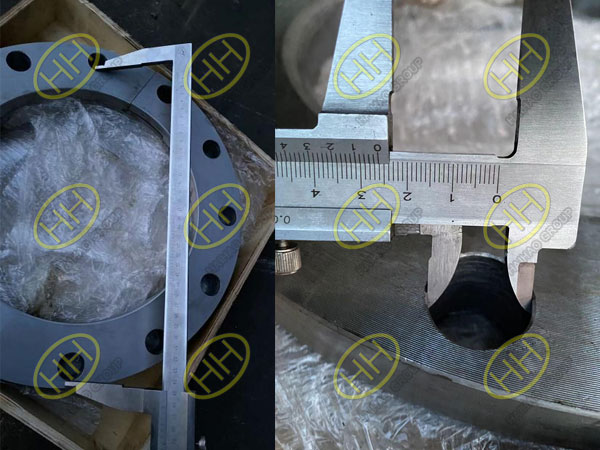

Detection of split ASME B16.5 ASTM A181 loose flange

Choosing Haihao Group, you are assured that we will not only complete the goods quickly and well, but also provide you with suggestions according to your purchase intention. If you have any questions, please do not hesitate to contact me.
